6SD 6 Hp Deep Well Pump

Category:

Deep well pump

Description:

Specializing in the production of all kinds of water pumps

Key words:

Water pump

6SD 6 Hp Deep Well Pump

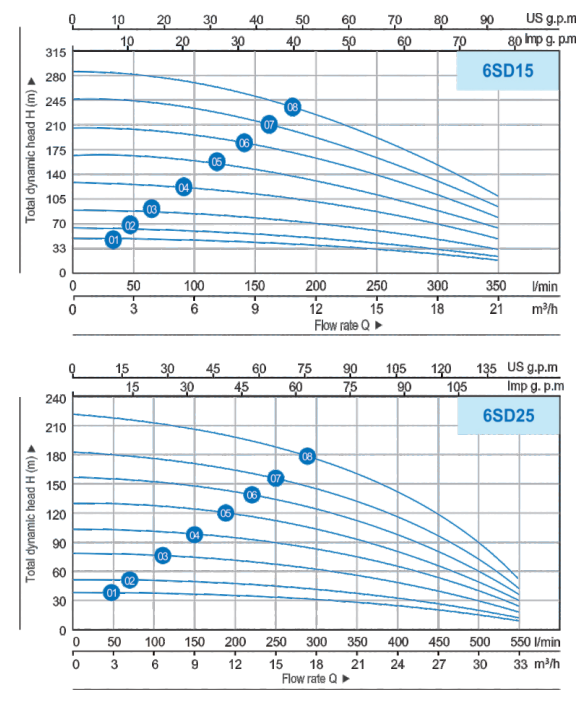

Techincal Data

NO.	MODEL		POWER		DELIVERY n≈2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	3	6	9	12	15	18	21
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	50	100	150	200	250	300	350
01	6SDM15/4	一	2.2	3	H(m)		51	50	48	45	40	34	27	19
02	6SDM15/5	6SD15/5	3	4			64	63	61	56	50	42	34	24
03	6SDM15/7	6SD15/7	4	5.5			90	89	85	79	7	60	47	34
04	6SDM15/10	6SD15/10	5.5	7.5			129	128	122	114	101	86	68	49
05	-	6SD15/13	7.5	10			168	167	159	148	132	112	89	65
06	-	6SD15/16	9.2	12.5			207	204	196	182	163	138	110	80
07	-	6SD15/19	11	15			246	243	233	217	194	164	130	95
08	-	6SD15/22	15	20			285	281	270	251	225	190	151	110

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	3	6	9	12	15	18	21	24	27	30	33
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	50	100	150	200	250	300	350	400	450	500	550
01	6SDM25/3	一	2.2	3	H(m)		38	38	37	36	34	32	30	27	24	20	15	8
02	6SDM25/4	6SD25/4	3	4			51	51	50	49	46	43	40	37	33	27	20	11
03	6SDM25/6	6SD25/6	4	5.5			77	76	75	73	70	66	61	56	50	41	31	17
04	6SDM25/8	6SD25/8	5.5	7.5			103	102	101	98	94	88	82	75	67	55	42	23
05	-	6SD25/10	7.5	10			129	128	126	123	117	110	103	94	84	68	53	29
06	-	6SD25/12	9.2	12.5			155	154	151	148	141	132	123	113	101	82	63	35
07	-	6SD25/14	11	15			181	179	177	173	165	155	144	132	118	96	74	41
08	-	6SD25/17	15	20			220	218	215	210	200	188	175	160	143	117	90	50

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	5	10	15	20	25	30	35	40	45
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	83	167	250	333	417	500	583	667	750
01	6SDM35/3	6SD35/3	3	4	H(m)		38	37	35	34	31	29	26	22	16	10
02	6SDM35/4	6SD35/4	4	5.5			51	49	47	45	42	39	35	29	22	13
03	6SDM35/5	6SD35/5	5.5	7.5			64	62	59	57	53	49	44	37	27	17
04	-	6SD35/7	7.5	10			89	87	83	80	74	69	61	52	39	24
05	-	6SD35/8	9.2	12.5			102	99	95	91	85	79	70	59	45	28
06	-	6SD35/10	11	15			128	124	119	114	107	99	88	74	56	35
07	-	6SD35/13	15	20			167	162	155	149	139	129	115	97	73	46

NO.	MODEL		POWER		DELIVERY n≈2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	6	12	18	24	30	36	42	48	54	60
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	100	200	300	400	500	600	700	800	900	1000
01	6SD45/3	6SD45/3	4	5.5	H(m)		38	37	36	34	32	30	27	23	19	15	9
02	6SD45/4	6SD45/4	5.5	7.5			50	49	48	46	43	40	36	31	26	20	12
03	-	6SD45/5	7.5	10			63	62	60	57	54	50	45	39	32	25	15
04	-	6SD45/6	9.2	12.5			76	75	72	69	65	60	54	48	39	30	19
05	-	6SD45/7	11	15			89	87	84	81	76	70	63	56	46	35	22
06	-	6SD45/10	15	20			127	125	121	116	109	101	91	80	66	51	32
