6SR Buy 6 Hp Deep Well Pump

Category:

Deep well pump

Description:

Specializing in the production of all kinds of water pumps

Key words:

Water pump

6SR Buy 6 Hp Deep Well Pump

Techincal Data

NO.	MODEL		POWER		DELIVERY n≈2850 r/min
	1~ 220-240V	3~ 380 -415V	kW	HP	Q	m³/h	0	3	6	9	12	15	18
	1~ 220-240V	3~ 380 -415V	kW	HP	Q	l/min	0	50	100	150	200	250	300
01	6SRM10/4	一	2.2	3	H(m)		53	50	46	39	30	20	8
02	6SRM10/6	6SR10/6	3	4			81	76	69	59	46	31	12
03	6SRM10/8	6SR10/8	4	5.5			08	102	93	79	62	41	16
04	6SRM10/11	6SR10/11	5.5	7.5			48	140	128	109	85	57	23
05	一	6SR10/15	7.5	10			203	192	175	149	116	78	32
06	一	6SR10/18	9.2	12.5			244	230	210	179	40	94	38
07	一	6SR10/22	11	12.5			298	282	257	218	71	115	47
08	一	6SR10/25	13	17.5			339	320	292	248	95	131	53
09	一	6SR10/29	15	20			393	372	339	288	226	152	62

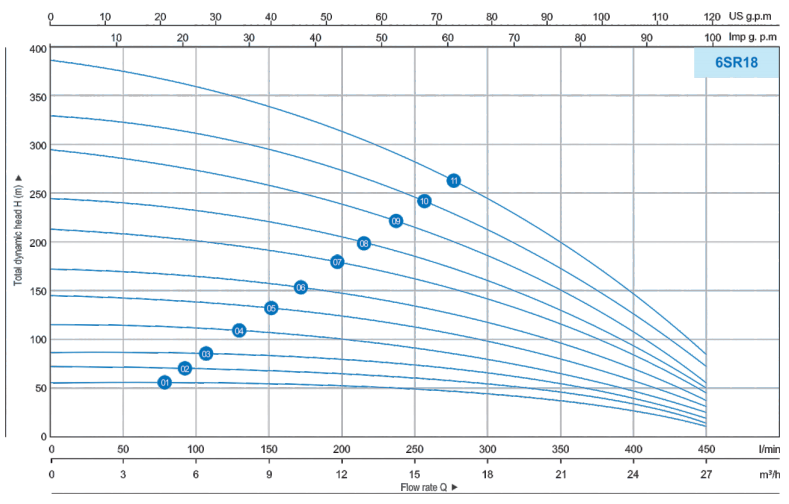

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	3	6	9	12	15	18	21	24	27
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	50	100	150	200	250	300	350	400	450
01	6SRM18/4	-	2.2	3	H(m)		56	54	52	49	46	41	36	29	21	12
02	6SRM18/5	6SR18/5	3	4			70	68	65	61	57	52	45	37	27	15
03	6SRM18/6	6SR18/6	4	5.5			84	82	78	74	69	62	54	44	32	18
04	6SRM18/8	6SR18/8	5.5	7.5			113	109	105	99	92	83	73	59	43	25
05	-	6SR18/10	7.5	10			141	137	131	124	116	105	91	75	55	31
06	-	6SR18/12	9.2	12.5			170	164	158	149	139	126	110	90	66	38
07	-	6SR18/15	11	15			212	206	197	187	174	157	137	112	82	47
08	-	6SR18/17	13	17.5			241	233	224	212	197	178	156	127	93	54
09	-	6SR18/21	15	20			297	289	276	261	244	221	192	158	116	66
10	-	6SR18/23	18.5	25			326	316	303	286	267	242	211	173	127	73
11	-	6SR18/27	22	30			383	371	356	336	314	284	248	203	149	86

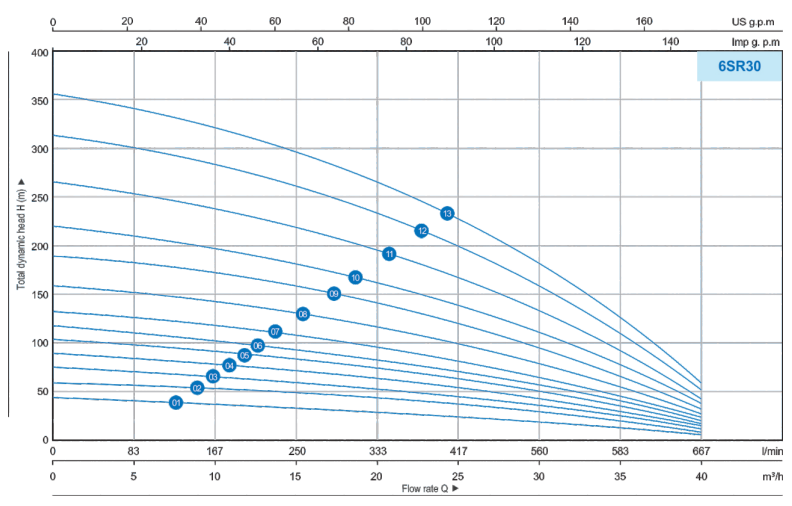

NO.	MODEL		POWER		DELIVERY n≈2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	5	10	15	20	25	30	35	40
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	83	167	250	333	417	500	583	667
01	6SRM30/3	6SR30/3	2.2	3	H(m)		42	40	38	35	31	27	21	14	6
02	6SRM30/4	6SR30/4	3	4			57	53	50	47	42	36	29	20	9
03	6SRM30/5	6SR30/5	4	5.5			71	67	63	59	53	45	36	25	11
04	6SRM30/6	6SR30/6	5.5	7.5			85	81	76	71	64	55	43	30	14
05	-	6SR30/7	7.5	10			100	94	89	83	75	64	51	35	16
06	-	6SR30/8	7.5	10			114	108	102	95	86	73	58	40	19
07	-	6SR30/9	9.2	12.5			128	122	115	107	96	82	65	45	21
08	-	6SR30/11	11	15			157	149	140	131	118	101	80	56	26
09	-	6SR30/13	13	17.5			186	176	166	155	140	120	95	66	31
10	-	6SR30/15	15	20			215	203	192	179	161	138	110	76	36
11	-	6SR30/18	18.5	25			258	244	231	215	194	166	132	91	44
12	-	6SR30/22	22	30			315	299	282	263	237	203	161	112	54
13	-	6SR30/25	26	35			358	340	321	299	270	231	183	127	61

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	6	12	18	24	30	36	42	48	54	60
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	100	200	300	400	500	600	700	800	900	1000
01	6SRM45/2	6SR45/2	3	4	H(m)		24	23	22	21	20	19	17	15	13	10	7
02	6SRM45/3	6SR45/3	4	5.5			36	35	34	32	31	29	26	23	19	15	11
03	6SRM45/4	6SR45/4	5.5	7.5			49	47	45	43	41	39	35	31	26	21	15
04	-	6SR45/6	7.5	10			73	71	69	66	62	58	53	47	40	32	23
05	-	6SR45/7	9.2	12.5			86	83	80	77	73	68	62	55	47	37	27
06	-	6SR45/9	11	15			111	107	103	99	94	88	80	71	60	48	35
07	-	6SR45/10	13	17.5			123	119	115	110	104	98	89	79	67	54	39
08	-	6SR45/11	15	20			136	131	126	121	115	108	98	87	74	59	43
09	-	6SR45/12	18.5	25			148	143	138	132	125	118	107	95	81	65	47
10	-	6SR45/14	22	30			173	167	161	155	146	137	125	111	95	76	55
11	-	6SR45/15	26	35			185	179	173	166	157	147	134	119	101	81	59

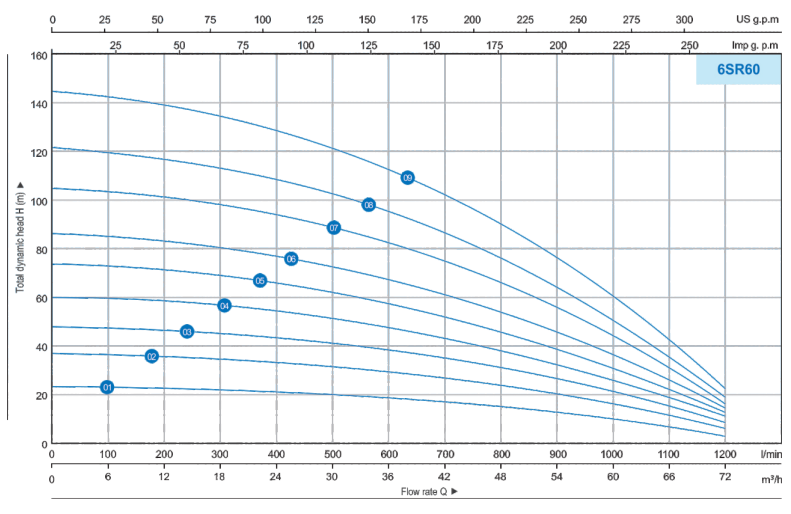

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	6	12	18	24	30	36	42	48	54	60	66	72
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	100	200	300	400	500	600	700	800	900	1000	1100	1200
01	6SRM60/2	6SR60/2	4	5.5	H(m)		23	23	22	22	21	20	18	17	14	12	9	6	3
02	6SRM60/3	6SR60/3	5.5	7.5			36	35	34	33	32	30	28	25	22	18	14	10	5
03	-	6SR60/4	7.5	10			48	47	46	44	43	40	38	34	30	25	19	13	7
04	-	6SR60/5	11	15			60	59	57	56	53	51	47	43	37	31	24	17	9
05	-	6SR60/6	13	17.5			72	71	69	67	64	61	57	52	45	37	29	20	11
06	-	6SR60/7	15	20			84	83	80	78	75	71	66	60	53	44	34	24	13
07	-	6SR60/9	18.5	25			109	106	104	101	97	92	86	78	68	56	44	31	17
08	-	6SR60/10	22	30			121	118	115	112	108	102	95	87	76	63	49	34	19
09	-	6SR60/12	26	35			145	142	139	135	130	123	115	104	91	75	59	41	23
