6SP 6 Hp Deep Well Pump Factory

Category:

Deep well pump

Description:

Specializing in the production of all kinds of water pumps

Key words:

Water pump

6SP 6 Hp Deep Well Pump Factory

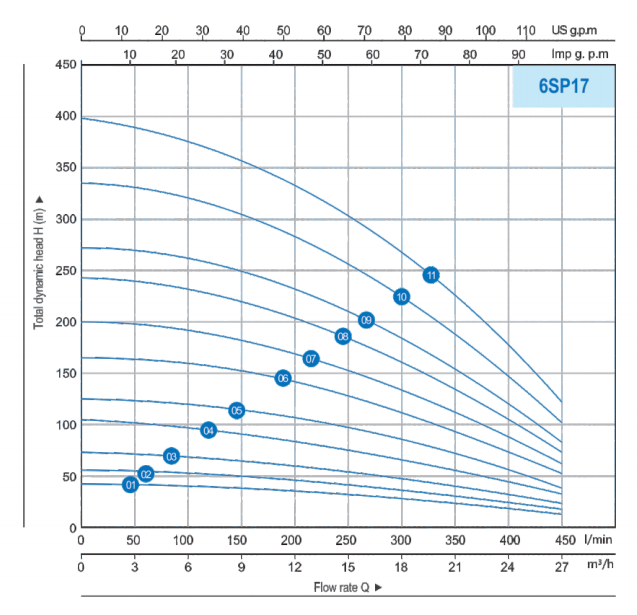

Techincal Data

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	3	6	9	12	15	18	21	24	27
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	50	100	150	200	250	300	350	400	450
01	6SPM17-4	-	2.2	3	H(m)		42	41	39	38	36	34	30	24	19	13
02	6SPM17-5	6SP17-5	3	4			53	51	49	47	45	42	37	30	23	16
03	6SPM17-7	6SP17-7	4	5.5			74	71	69	66	63	59	52	42	33	22
04	6SPM17-10	6SP17-10	5.5	7.5			105	102	98	95	91	85	74	60	47	32
05	-	6SP17-12	7.5	10			126	122	118	114	109	102	89	73	56	38
06	-	6SP17-16	9.2	12.5			168	163	158	152	145	136	119	97	75	51
07	-	6SP17-19	11	15			200	193	187	180	172	161	141	115	89	61
08	-	6SP17-23	13	17.5			242	234	227	218	208	195	171	139	107	73
09	-	6SP17-26	15	20			273	265	256	246	236	220	193	157	122	83
10	-	6SP17-32	18.5	25			336	326	315	303	290	271	237	193	150	102
11	-	6SP17-38	22	30			399	387	374	360	344	322	282	230	178	121

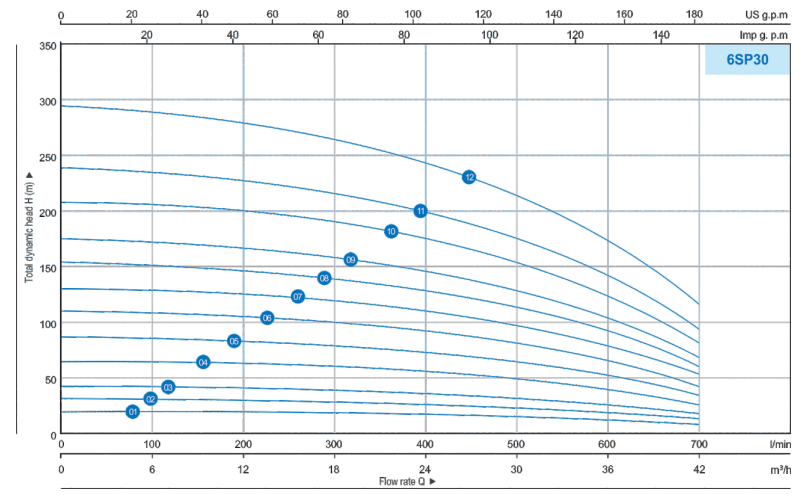

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	6	12	18	24	30	36	42
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	100	200	300	400	500	600	700
01	6SPM30-2	-	2.2	3	H(m)		22	21	21	20	18	16	13	9
02	6SPM30-3	6SP30-3	3	4			33	32	31	29	27	24	19	13
03	6SPM30-4	6SP30-4	4	5.5			43	42	41	39	36	32	26	17
04	6SPM30-6	6SP30-6	5.5	7.5			65	64	62	59	55	48	38	26
05	-	6SP30-8	7.5	10			87	85	82	78	73	64	51	34
06	-	6SP30-10	9.2	10.5			109	106	103	98	91	80	64	43
07	-	6SP30-12	11	12.5			130	127	123	118	109	96	77	52
08	-	6SP30-14	13	17.5			152	148	144	137	127	112	90	60
09	-	6SP30-16	15	20			174	170	164	157	146	129	103	69
10	-	6SP30-20	22	30			217	212	206	196	182	161	128	86
11	-	6SP30-22	22	30			239	233	226	215	200	177	141	95
12	-	6SP30-27	30	40			293	286	277	264	246	217	173	116

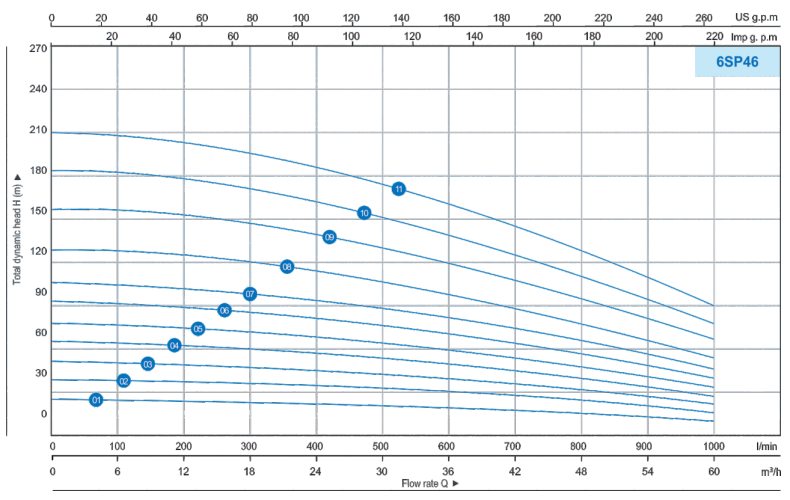

NO.	MODEL		POWER		DELIVERY n≈2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	6	12	18	24	30	36	42	48	54	60
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	100	200	300	400	500	600	700	800	900	1000
01	6SPM46-2	6SP46-2	3	4	H(m)		26	26	26	25	24	22	20	18	16	14	11
02	6SPM46-3	6SP46-3	4	5.5			39	39	38	37	35	33	30	27	24	21	17
03	6SPM46-4	6SP46-4	5.5	7.5			53	52	51	50	47	44	40	36	32	28	23
04	-	6SP46-5	7.5	10			66	65	64	62	59	55	50	45	40	34	28
05	-	6SP46-6	9.2	12.5			79	78	77	74	71	66	60	55	48	41	34
06	-	6SP46-7	11	15			92	91	90	87	83	77	70	64	56	48	40
07	-	6SP46-8	13	17.5			105	104	102	99	94	88	80	73	64	55	45
08	-	6SP46-10	15	20			132	130	128	124	118	110	101	91	80	69	56
09	-	6SP46-12	18.5	25			158	156	154	149	142	131	121	109	97	83	68
10	-	6SP46-14	22	30			184	182	179	174	165	153	141	127	113	97	79
11	-	6SP46-16	26	35			210	208	205	198	189	175	161	146	129	110	90

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	6	12	18	24	30	36	42	48	54	60	66	72
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	100	200	300	400	500	600	700	800	900	1000	1100	1200
01	6SPM60-2	6SP60-2	4	5.5	H(m)		28	28	27	27	26	25	23	21	19	17	15	13	11
02	6SPM60-3	6SP60-3	5.5	7.5			42	42	41	40	39	37	34	32	29	26	23	20	17
03	-	6SP60-4	7.5	10			56	56	55	54	52	49	46	42	39	35	31	27	22
04	-	6SP60-5	9.2	12.5			70	69	68	67	65	61	57	53	48	43	38	33	28
05	-	6SP60-6	11	15			84	83	82	80	78	74	68	63	58	52	46	40	33
06	-	6SP60-7	13	17.5			98	97	96	94	91	86	80	74	67	61	54	46	39
07	-	6SP60-8	15	20			112	111	110	107	104	98	91	84	77	70	61	53	45
08	一	6SP60-10	18.5	25			140	139	137	134	129	123	114	105	96	87	77	66	56
09	-	6SP60-12	22	30			168	167	164	161	155	147	137	126	116	104	92	80	67
10	-	6SP60-14	26	35			196	194	192	187	181	172	160	148	135	122	107	93	78
