2.5/3SD Deep Well Multistage Submersible Pump

Category:

Deep well pump

Description:

Specializing in the production of all kinds of water pumps

Key words:

Water pump

2.5/3SD Deep Well Multistage Submersible Pump

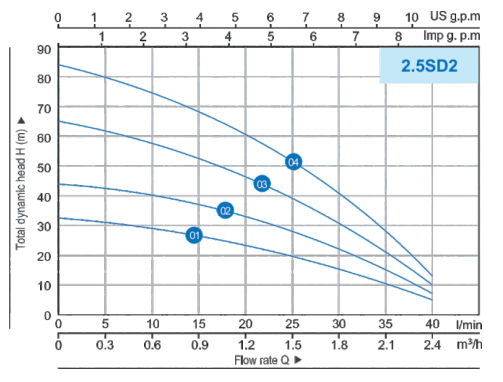

Techincal Data

NO.	MODEL	POWER		DELIVERY n≈2850 r/min
	1~ 220-240V	kW	HP	Q	m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4
	1~ 220-240V	kW	HP	Q	l/min	0	5	10	15	20	25	30	35	40
01	2.5SDM2/12	0.18	0.25	H(m)		33	30	28	26	23	20	17	11	5
02	2.5SDM2/17	0.25	0.33			44	42	39	37	33	29	24	16	7
03	2.5SDM2/22	0.37	0.5			65	60	56	52	46	42	33	22	10
04	2.5SDM2/31	0.55	0.75			84	77	72	67	60	57	43	29	13

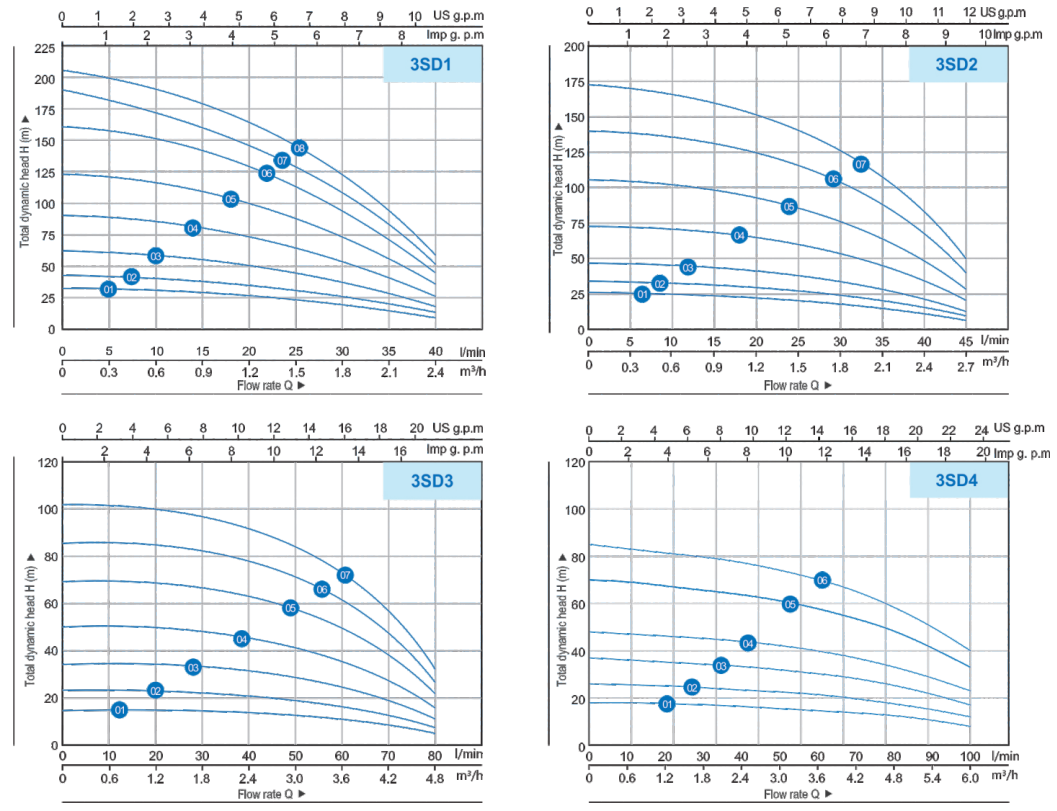

NO.	MODEL		POWER		DELIVERY n≈2850r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	5	10	15	20	25	30	35	40
01	3SDM1/8	-	0.18	0.25	H(m)		33	32	30	29	26	23	19	14	9
02	3SDM1/10	3SD1/10	0.25	0.33			41	40	38	36	33	29	23	18	12
03	3SDM1/15	3SD1/15	0.37	0.5			62	59	57	54	49	43	35	27	18
04	3SDM1/22	3SD1/22	0.55	0.75			90	87	84	80	73	63	51	39	26
05	3SDM1/30	3SD1/30	0.75	1			123	119	114	109	99	86	70	54	35
06	3SDM1/40	3SD1/40	1.1	1.5			164	158	152	145	132	114	94	71	47
07	3SDM1/47	3SD1/47	1.3	1.75			192	185	178	170	155	134	110	83	55
08	3SDM1/50	3SD1/50	1.5	2			205	198	190	181	165	143	117	89	59

NO.	MODEL		POWER		DELIVERY n≈2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	5	10	15	20	25	30	35	40	45
01	3SDM2/6	-	0.18	0.25	H(m)		26	26	25	24	23	21	19	16	11	7
02	3SDM2/8	3SD2/8	0.25	0.33			35	34	33	32	31	29	25	21	15	10
03	3SDM2/11	3SD2/11	0.37	0.5			48	47	46	45	43	39	35	29	21	14
04	3SDM2/17	3SD2/17	0.55	0.75			74	72	71	69	66	61	54	44	32	21
05	3SDM2/24	3SD2/24	0.75	1			104	102	100	97	93	86	76	63	46	30
06	3SDM2/33	3SD2/33	1.1	1.5			144	140	137	134	128	118	104	86	63	41
07	3SDM2/40	3SD2/40	1.5	2			174	170	167	162	155	143	127	104	76	49

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	10	20	30	40	50	60	70	80
01	3SDM3/4	-	0.18	0.25	H(m)		16	16	15	15	14	13	11	8	5
02	3SDM3/6	3SD3/6	0.25	0.33			24	24	23	22	21	19	16	12	7
03	3SDM3/9	3SD3/9	0.37	0.5			36	35	35	34	32	29	25	18	11
04	3SDM3/13	3SD3/13	0.55	0.75			52	51	50	49	46	42	36	27	16
05	3SDM3/18	3SD3/18	0.75	1			71	71	69	67	64	58	49	37	21
06	3SDM3/22	3SD3/22	1.1	1.5			87	86	85	82	78	71	60	45	26
07	3SDM3/26	3SD3/26	1.5	2			103	102	100	97	92	84	71	53	31

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	10	20	30	40	50	60	70	80	90
01	3SDM4/5	3SD4/5	0.25	0.33	H(m)		18	18	17	17	16	15	14	13	11	8
02	3SDM4/7	3SD4/7	0.37	0.5			26	25	25	24	23	22	20	18	16	12
03	3SDM4/10	3SD4/10	0.55	0.75			37	36	35	34	33	31	29	26	22	17
04	3SDM4/13	3SD4/13	0.75	1.0			48	47	46	45	43	41	38	34	29	23
05	3SDM4/19	3SD4/19	1.1	1.5			70	69	67	65	63	59	55	50	42	33
06	3SDM4/23	3SD4/23	1.5	2.0			85	83	81	79	76	72	67	60	51	40
