4SD Submersible Water Pump For Deep Well

Category:

Deep well pump

Description:

Specializing in the production of all kinds of water pumps

Key words:

Water pump

4SD Submersible Water Pump For Deep Well

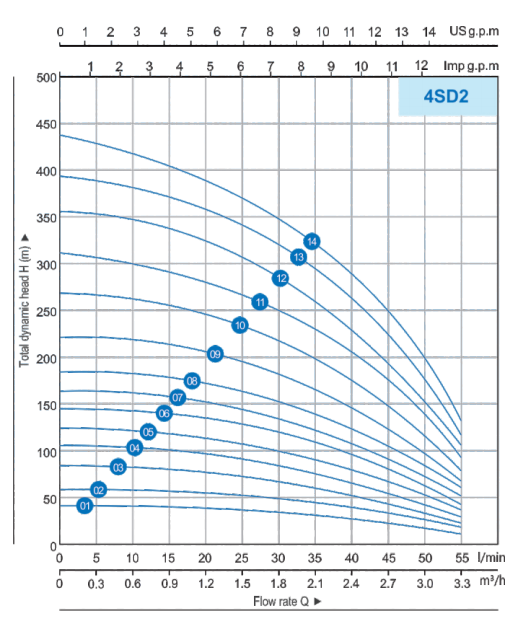

Techincal Data

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.0	3.3
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	5	10	15	20	25	30	35	40	45	50	55
01	4SDM2/6	-	0.25	0.33	H(m)		42	42	41	40	39	37	35	31	27	23	18	13
02	4SDM2/8	4SD2/8	0.37	0.5			57	56	55	54	52	50	46	41	36	30	24	17
03	4SDM2/12	4SD2/12	0.55	0.75			85	84	82	80	78	74	68	62	54	45	34	25
04	4SDM2/15	4SD2/15	0.75	1			106	105	103	100	97	93	86	80	67	56	62	32
05	4SDM2/17	4SD2/17	0.92	1.25			120	119	117	115	111	106	98	88	77	64	50	36
06	4SDM2/21	4SD2/21	1.1	1.5			149	147	145	141	137	130	120	109	95	78	62	45
07	4SDM2/23	4SD2/23	1.3	1.75			163	161	159	155	150	143	132	119	104	87	68	49
08	4SDM2/25	4SD2/25	1.5	2			177	175	173	168	163	155	143	130	113	93	74	54
09	4SDM2/32	4SD2/32	1.8	2.5			227	225	221	216	209	199	184	166	145	121	91	68
10	4SDM2/38	4SD2/38	2.2	3			269	267	262	256	248	236	219	197	172	143	112	81
11	4SDM2/44	4SD2/44	2.6	3.5			312	309	304	297	287	273	253	228	199	166	130	94
12	-	4SD2/50	3	4			354	351	345	337	327	310	283	259	227	189	148	106
13	-	4SD2/56	3.7	5			397	393	387	378	366	348	322	290	254	211	165	119
14	-	4SD2/62	4	5.5			439	435	428	418	405	385	357	321	281	234	183	132

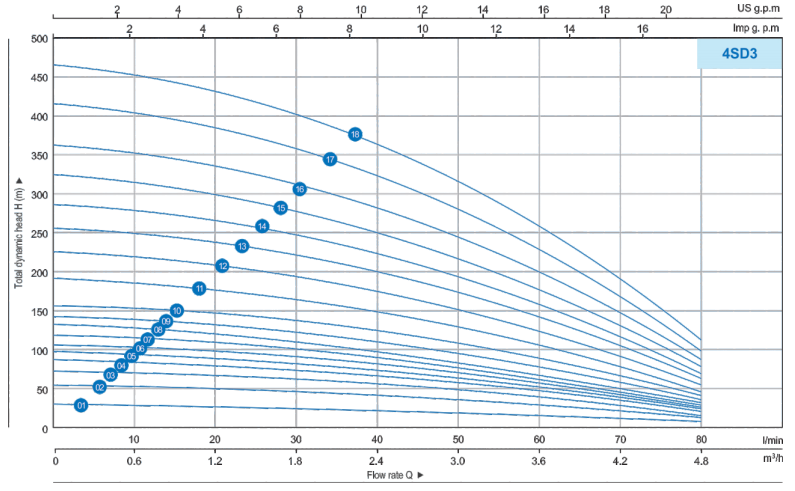

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	10	20	30	40	50	60	70	80
01	4SDM3/4	-	0.25	0.33	H(m)		30	29	28	26	23	21	17	12	7
02	4SDM3/7	4SD3/7	0.37	0.5			53	51	49	46	41	36	29	21	13
03	4SDM3/10	4SD3/10	0.55	0.75			76	73	70	66	59	51	41	30	19
04	4SDM3/12	4SD3/12	0.75	1			91	87	84	79	70	62	50	36	22
05	4SDM3/13	4SD3/13	0.75	1			98	95	91	85	76	67	54	39	24
06	4SDM3/14	4SD3/14	0.92	1.25			106	102	97	91	82	72	58	42	25
07	4SDM3/15	4SD3/15	1.1	1.5			114	109	105	99	88	77	62	45	28
08	4SDM3/18	4SD3/18	1.1	1.5			136	131	126	118	105	93	75	54	33
09	4SDM3/19	4SD3/19	1.3	1.75			143	138	132	123	112	98	79	57	35
10	4SDM3/20	4SD3/20	1.5	2			151	146	140	131	117	103	83	60	37
11	4SDM3/26	4SD3/26	1.8	2.5			196	189	180	168	153	134	109	78	47
12	4SDM3/30	4SD3/30	2.2	3			226	218	208	194	176	155	125	90	54
13	4SDM3/34	4SD3/34	2.6	3.5			257	247	236	220	200	175	142	103	61
14	-	4SD3/38	3	4			287	278	264	246	223	196	159	115	69
15	-	4SD3/43	3.7	5			325	313	298	278	252	222	180	130	78
16	-	4SD3/48	4	5.5			362	349	333	310	282	248	201	145	87
17	-	4SD3/55	5	7			415	400	381	356	323	284	230	166	99
18	-	4SD3/62	5.5	7.5			468	451	430	401	364	320	259	187	112

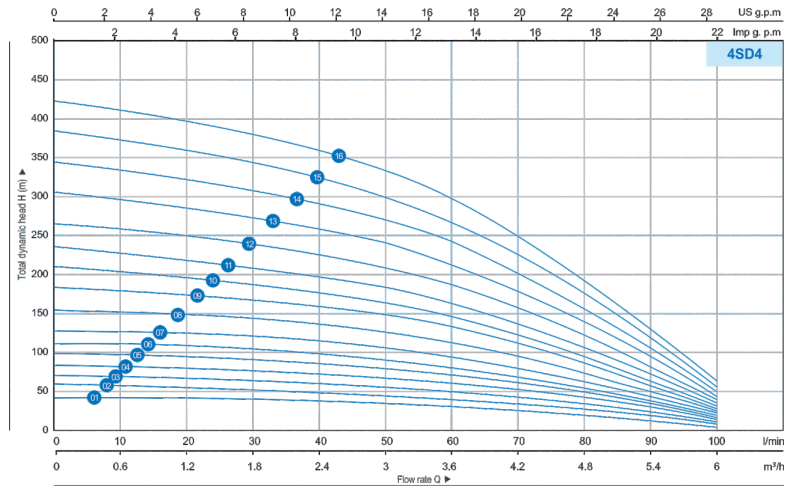

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	10	20	30	40	50	60	70	80	90	100
01	4SDM4/6	4SD4/6	0.37	0.5	H(m)		42	41	39	38	36	33	30	25	19	13	6
02	4SDM4/8	4SD4/8	0.55	0.75			57	55	53	50	48	44	40	33	26	17	9
03	4SDM4/10	4SD4/10	0.75	1			71	68	66	63	60	55	50	42	32	21	11
04	4SDM4/12	4SD4/12	0.92	1.25			85	82	79	76	72	67	59	50	39	26	13
05	4SDM4/14	4SD4/14	1.1	1.5			99	96	92	88	84	78	69	58	45	30	15
06	4SDM4/16	4SD4/16	1.3	1.75			113	109	105	101	96	89	79	67	51	34	17
07	4SDM4/18	4SD4/18	1.5	2			127	123	118	114	108	100	89	75	58	39	19
08	4SDM4/22	4SD4/22	1.8	2.5			156	150	144	139	132	122	109	92	71	47	23
09	4SDM4/26	4SD4/26	2.2	3			184	177	171	164	156	144	129	109	83	56	28
10	4SDM4/30	4SD4/30	2.6	3.5			212	205	197	189	180	166	149	125	96	64	32
11	-	4SD4/34	3	4			241	232	223	214	203	189	168	142	109	73	36
12	-	4SD4/39	3.7	5			276	266	256	246	233	216	193	163	125	84	42
13	-	4SD4/44	4	5.5			312	300	289	277	263	244	218	184	141	94	47
14	-	4SD4/49	5	7			347	334	322	309	293	272	243	205	157	105	52
15	-	4SD4/54	5.5	7.5			382	368	354	341	323	300	267	226	173	116	57
16	-	4SD4/62	7.5	10			439	423	407	391	371	344	307	259	199	133	66

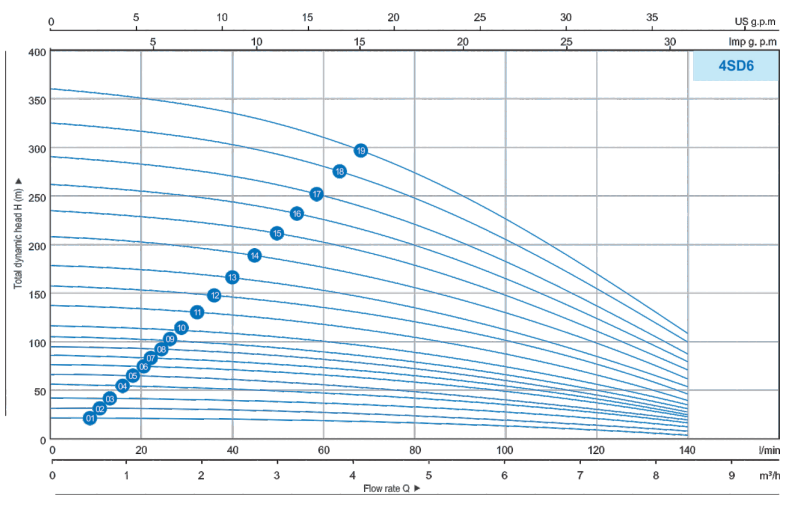

NO.	MODEL		POWER		DELIVERY n≈2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	20	40	60	80	100	120	140
01	4SDM6/4	4SD6/4	0.37	0.5	H(m)		28	27	26	24	21	17	13	8
02	4SDM6/5	4SD6/5	0.37	0.5			35	34	33	30	26	21	16	10
03	4SDM6/6	4SD6/6	0.55	0.75			42	40	39	36	32	26	20	13
04	4SDM6/8	4SD6/8	0.75	1			56	54	52	48	42	35	27	17
05	4SDM6/10	4SD6/10	0.92	1.25			70	68	66	60	52	42	32	20
06	4SDM6/11	4SD6/11	1.1	1.5			77	74	71	66	58	48	37	23
07	4SOM6/13	4SD6/13	1.3	1.75			90	87	84	78	69	57	43	27
08	4SDM6/14	4SD6/14	1.5	2			98	95	92	84	73	59	45	28
09	4SDM6/15	4SD6/15	1.5	2			104	101	97	90	80	65	50	32
10	4SDM6/17	4SD6/17	1.8	2.5			118	114	110	102	90	74	57	36
11	4SDM6/20	4SD6/20	2.2	3			139	134	129	120	106	87	67	42
12	4SDM6/23	4SD6/23	2.6	3.5			160	154	148	138	122	100	77	49
13	-	4SD6/26	3	4			181	175	168	156	138	113	86	55
14	-	4SD6/30	3.7	5			209	201	193	180	159	131	100	63
15	-	4SD6/34	4	5.5			237	228	219	204	180	148	113	72
16	-	4SD6/38	5	7			265	255	245	228	202	166	126	80
17	-	4SD6/42	5.5	7.5			292	282	271	252	223	183	140	89
18	-	4SD6/47	6.8	9			327	315	303	282	249	205	156	99
19	-	4SD6/52	7.5	10			362	349	335	312	276	227	173	110

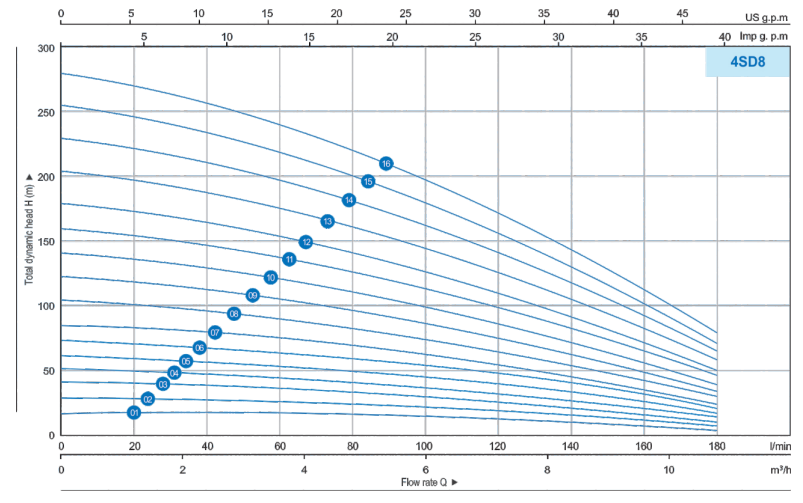

NO.	MODEL		POWER		DELIVERY n≈2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	20	40	60	80	100	120	140	160	180
01	4SDM8/4	4SD8/4	0.55	0.75	H(m)		25	23	22	21	19	17	16	14	10	7
02	4SDM8/5	4SD8/5	0.75	0.75			31	29	28	26	24	22	20	17	13	9
03	4SDM8/7	4SD8/7	0.92	1.25			44	40	39	37	33	30	28	25	18	12
04	4SDM8/9	4SD8/9	1.1	1.5			56	53	50	47	43	40	37	31	24	16
05	4SDM8/10	4SD8/10	1.3	1.75			62	59	55	52	48	45	41	35	27	17
06	4SDM8/12	4SD8/12	1.5	2			75	71	66	62	58	54	49	42	32	21
07	4SDM8/14	4SD8/14	1.8	2.5			87	83	78	73	68	63	57	49	38	24
08	4SDM8/17	4SD8/17	2.2	3			106	100	94	88	82	76	69	59	46	29
09	4SDM8/20	4SD8/20	2.6	3.5			125	118	111	104	97	90	82	70	54	35
10	-	4SD8/23	3	4			143	136	127	119	111	103	94	80	62	40
11	-	4SD8/26	3.7	5			162	153	144	135	126	117	106	90	70	45
12	-	4SD8/29	4	5.5			181	171	161	150	140	130	118	101	78	50
13	-	4SD8/33	5	7			206	195	183	171	160	149	135	115	89	57
14	-	4SD8/37	5.5	7.5			230	218	205	192	179	167	151	129	99	64
15	-	4SD8/41	6.8	9			255	242	227	213	198	185	167	143	110	71
16	-	4SD8/45	7.5	10			280	265	249	233	218	203	184	157	121	78

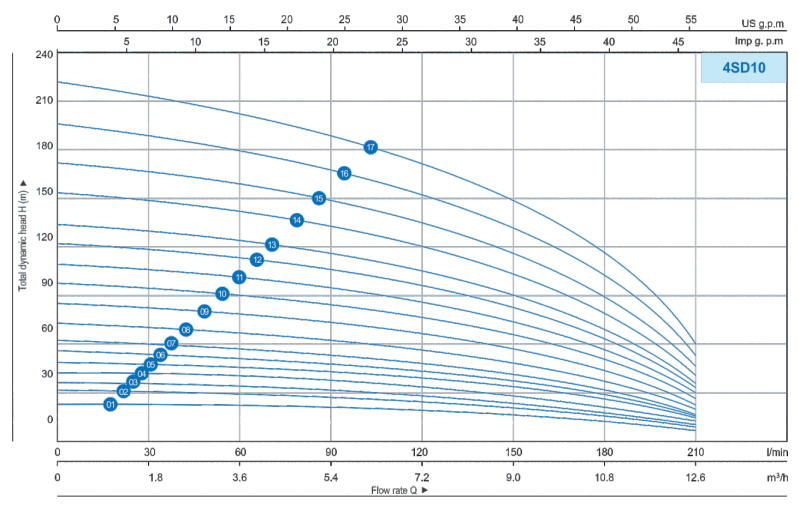

NO.	MODEL		POWER		DELIVERY n~2850r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	1.8	3.6	5.4	7.2	9	10.8	12.6
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	30	60	90	120	150	180	210
01	4SDM10/4	4SD10/4	0.75	1	H(m)		25	24	22	21	19	17	12	7
02	4SDM10/5	4SD10/5	0.75	1			31	30	28	26	24	21	16	8
03	4SDM10/6	4SD10/6	0.92	1.25			38	36	33	32	29	26	18	11
04	4SDM10/7	4SD10/7	1.1	1.5			43	41	39	37	34	29	22	11
05	4SDM10/8	4SD10/8	1.3	1.75			49	47	45	42	39	33	25	13
06	4SDM10/9	4SD10/9	1.5	2			56	54	50	47	43	38	27	16
07	4SDM10/10	4SD10/10	1.5	2			62	59	56	52	48	41	31	16
08	4SDM10/12	4SD10/12	1.8	2.5			74	71	67	63	58	50	37	20
09	4SDM10/14	4SD10/14	2.2	3			86	83	79	73	68	58	44	23
10	4SDM10/16	4SD10/16	2.6	3.5			99	95	90	84	77	66	50	26
11	-	4SD10/18	3	4			111	106	101	94	87	74	56	29
12	-	4SD10/20	3.7	5			123	118	112	105	97	83	62	33
13	-	4SD10/22	4	5.5			136	130	123	115	106	91	68	36
14	-	4SD10/25	5	7			154	148	140	131	121	103	78	41
15	-	4SD10/28	5.5	7.5			173	166	157	147	135	116	87	46
16	-	4SD10/32	6.8	9			197	189	180	168	155	132	100	52
17	-	4SD10/36	7.5	10			222	213	202	189	174	149	112	59

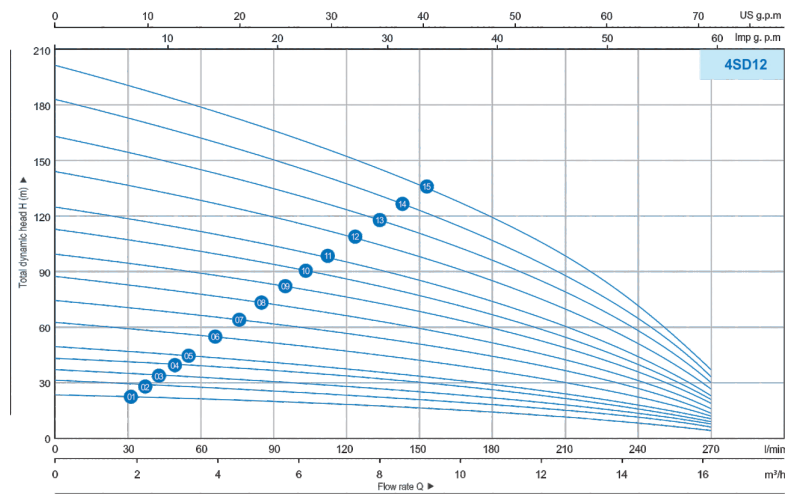

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4	16.2
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	20	60	90	120	150	180	210	240	270
01	4SDM12/4	4SD12/4	0.75	1	H(m)		25	24	23	21	19	17	15	12	9	5
02	4SOM12/5	4SD12/5	0.92	1.25			32	30	28	26	24	21	19	15	11	6
03	4SDM12/6	4SD12/6	1.1	1.5			38	36	34	31	29	26	22	19	13	7
04	4SDM12/7	4SD12/7	1.3	1.75			44	42	39	37	33	30	26	22	16	8
05	4SDM12/8	4SD12/8	1.5	2			51	48	45	42	38	34	30	25	18	9
06	4SDM12/10	4SD12/10	1.8	2.5			63	60	56	52	48	43	37	31	22	12
07	4SDM12/12	4SD12/12	2.2	3			76	72	68	63	57	51	45	37	27	14
08	4SDM12/14	4SD12/14	2.6	3.5			88	84	79	73	67	60	52	43	31	16
09	-	4SD12/16	3	4			101	96	90	84	77	69	60	50	36	19
10	-	4SD12/18	3.7	5			114	108	101	94	86	77	67	56	40	21
11	-	4SD12/20	4	5.5			126	120	113	104	96	86	74	62	44	23
12	-	4SD12/23	5	7			145	137	129	120	110	98	86	71	51	27
13	-	4SD12/26	5.5	7.5			164	155	146	136	124	111	97	80	58	30
14	-	4SD12/29	6.8	9			183	173	163	151	139	124	108	90	64	34
15	-	4SD12/32	7.5	10			202	191	180	167	153	137	119	99	71	37

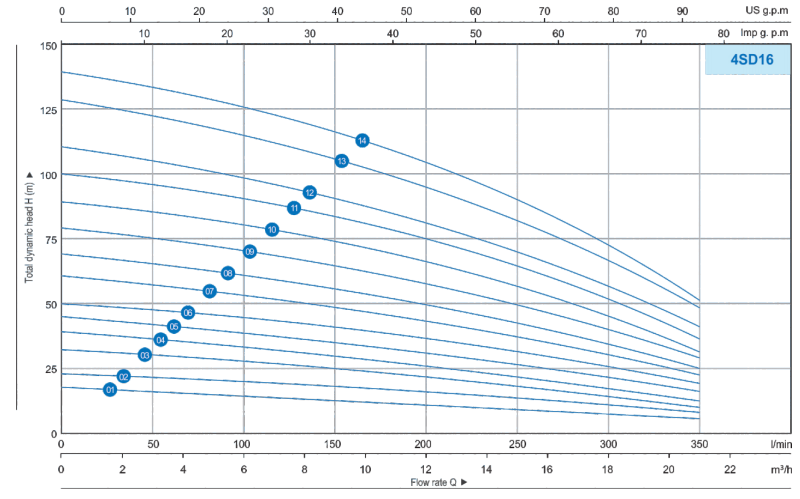

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	3	6	9	12	15	18	21
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	50	100	150	200	250	300	350
01	4SDM16/3	4SD16/3	0.75	1	H(m)		17	16	16	14	12	11	9	6
02	4SDM16/4	4SD16/4	1.1	1.5			22	22	21	19	17	14	11	8
03	4SDM16/5	4SD16/5	1.3	1.75			28	27	26	24	21	18	14	10
04	4SDM16/6	4SD16/6	1.5	2			33	33	31	28	25	21	17	12
05	4SDM16/8	4SD16/8	1.8	2.5			44	44	42	38	33	28	23	17
06	4SDM16/9	4SD16/9	2.2	3			50	49	47	42	37	32	26	19
07	4SDM16/11	4SD16/11	2.6	3.5			61	60	57	52	46	39	31	23
08	-	4SD16/12	3	4			67	65	62	57	50	42	34	25
09	-	4SD16/14	3.7	5			78	76	73	66	58	49	40	29
10	-	4SD16/16	4	5.5			89	87	83	76	67	56	45	33
11	-	4SD16/18	5	7			100	98	94	85	75	63	51	37
12	-	4SD16/20	5.5	7.5			111	109	104	94	83	70	57	42
13	-	4SD16/23	6.8	9			128	125	120	109	96	81	65	48
14	-	4SD16/25	7.5	10			139	136	130	118	104	88	71	52
