4SP Deep Well Submersible Water Pump

Category:

Deep well pump

Description:

Specializing in the production of all kinds of water pumps

Key words:

Water pump

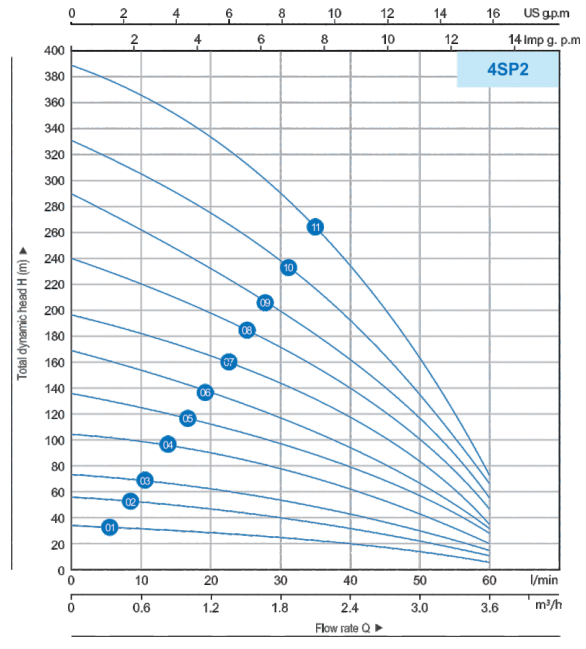

4SP Deep Well Submersible Water Pump

Techincal Data

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.6	1.2	1.8	2.4	3.0	3.6
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	10	20	30	40	50	60
01	4SPM2/6	4SP2/6	0.37	0.5	H(m)		36	33	30	27	20	12	7
02	4SPM2/9	4SP2/9	0.37	0.5			54	50	46	40	31	18	10
03	4SPM2/13	4SP2/13	0.55	0.75			76	72	66	58	45	27	15
04	4SPM2/18	4SP2/18	0.75	1			107	100	91	80	62	37	20
05	4SPM2/23	4SP2/23	1.1	1.5			137	128	116	103	80	48	32
06	4SPM2/28	4SP2/28	1.5	2.0			167	156	142	124	98	59	37
07	4SPM2/33	4SP2/33	1.5	2			197	184	167	146	115	70	38
08	4SPM2/40	4SP2/40	1.8	2.5			240	223	202	178	140	85	46
09	4SPM2/48	4SP2/48	2.2	3			289	267	243	213	168	102	56
10	4SPM2/55	4SP2/55	2.6	3.5			329	306	278	244	192	117	64
11	一	4SP2/65	3	4			388	362	329	288	228	138	75

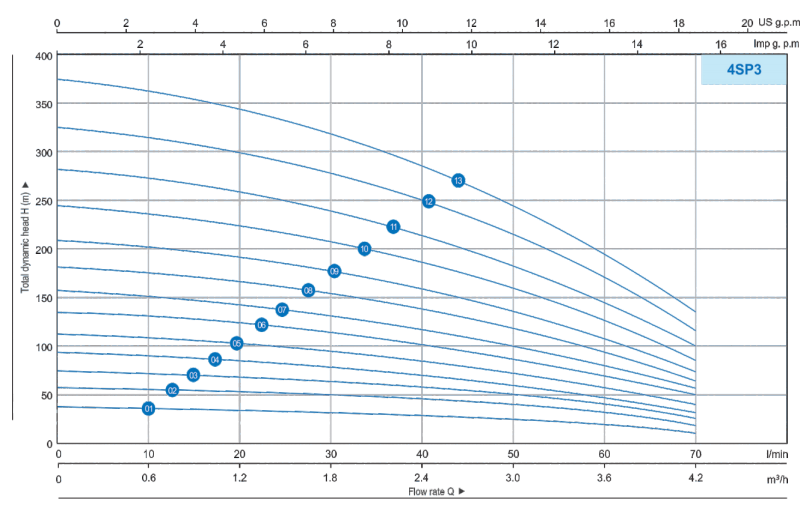

NO.	MODEL		POWER		DELIVERY n≈2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	10	20	30	40	50	60	70
01	4SPM3/6	4SP3/6	0.37	0.5	H(m)		38	35	33	31	29	26	21	14
02	4SPM3/9	4SP3/9	0.55	0.75			56	53	50	47	44	38	31	21
03	4SPM3/12	4SP3/12	0.75	1			75	71	67	63	58	51	41	29
04	4SPM3/15	4SP3/15	1.1	1.5			94	88	83	78	73	64	52	36
05	4SPM3/18	4SP3/18	1.1	1.5			113	106	100	94	87	77	62	43
06	4SPM3/22	4SP3/22	1.5	2			138	129	122	115	107	94	76	52
07	4SPM3/25	4SP3/25	1.5	2			157	147	139	130	121	107	86	60
08	4SPM3/29	4SP3/29	1.8	2.5			182	171	161	151	141	124	100	69
09	4SPM3/33	4SP3/33	2.2	3			207	194	184	172	160	141	114	79
10	4SPM3/39	4SP3/39	2.6	3.5			244	229	217	203	189	166	135	93
11	-	4SP3/45	3	4			282	265	251	235	218	192	155	107
12	-	4SP3/52	3.7	5			326	306	289	271	252	222	179	124
13	-	4SP3/60	4	5.5			376	353	334	313	291	256	207	143

NO.	MODEL		POWER		DELIVERY n≈2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4	6	6.6
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	10	20	30	40	50	60	70	81	90	100	110
01	4SPM5/4	4SP5/4	0.37	0.5	H(m)		25	25	24	23	22	21	20	19	17	15	12	9
02	4SPM5/6	4SP5/6	0.55	0.75			38	37	35	34	33	31	30	28	25	22	18	13
03	4SPM5/8	4SP5/8	0.75	1			51	49	47	45	44	42	40	37	34	29	24	18
04	4SPM5/10	4SP5/10	0.92	1.25			64	62	60	58	56	53	51	48	44	38	31	22
05	4SPM5/12	4SP5/12	1.1	1.5			76	74	71	68	66	63	60	56	51	44	36	26
06	4SPM5/15	4SP5/15	1.3	1.75			96	92	88	85	82	79	75	70	64	55	45	33
07	4SPM5/17	4SP5/17	1.5	2			108	104	100	96	93	89	85	79	72	62	51	37
08	4SPM5/21	4SP5/21	1.8	2.5			134	129	124	119	115	110	105	98	89	77	63	46
09	4SPM5/25	4SP5/25	2.2	3			159	153	147	142	137	131	125	117	106	92	75	55
10	4SPM5/29	4SP5/29	2.6	3.5			185	178	171	164	159	152	145	135	123	106	87	63
11	-	4SP5/33	3	4			210	202	194	187	180	173	164	154	140	121	99	72
12	-	4SP5/38	3.7	5			242	233	224	215	208	200	189	177	162	139	114	83
13	-	4SP5/44	4	5.5			280	270	259	249	241	231	219	205	187	161	132	96
14	-	4SP5/52	5	7			331	319	306	295	284	273	259	243	221	191	156	114
15	-	4SP5/58	5.5	7.5			369	356	341	329	317	304	289	271	246	213	174	127

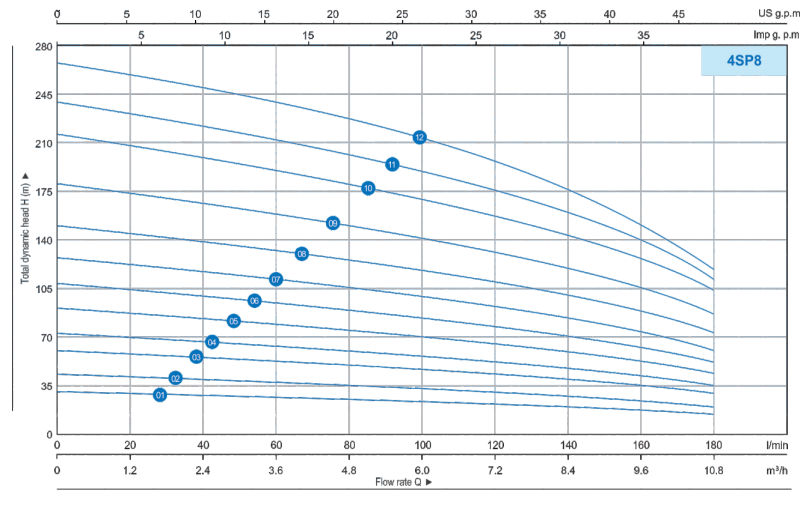

NO.	MODEL		POWER		DELIVERY n~2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	1.2	2.4	3.6	4.8	6.0	7.2	8.4	9.6	10.8
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	20	40	60	80	100	120	140	160	180
01	4SPM8/5	4SP8/5	0.75	1	H(m)		30	28	26	25	24	23	22	20	17	14
02	4SPM8/7	4SP8/7	1.1	1.5			42	39	37	35	34	32	31	28	24	20
03	4SPM8/10	4SP8/10	1.5	2			60	56	53	50	48	46	44	40	35	29
04	4SPM8/12	4SP8/12	1.8	2.5			72	67	63	60	58	55	52	48	42	34
05	4SPM8/15	4SP8/15	2.2	3			90	84	79	75	72	69	66	60	52	43
06	一	4SP8/18	3	4			108	100	95	91	86	83	79	72	63	51
07	一	4SP8/21	3.7	5			126	117	110	106	101	97	92	84	73	60
08	一	4SP8/25	4	5.5			150	139	131	126	120	115	109	100	87	71
09	一	4SP8/30	5	7			180	167	158	151	144	138	131	120	105	86
10	一	4SP8/36	5.5	7.5			216	201	189	181	173	166	157	144	125	103
11	一	4SP8/40	6.8	9			240	223	210	201	192	184	174	160	138	114
12	一	4SP8/44	7.5	10			264	245	237	221	211	202	191	176	150	125

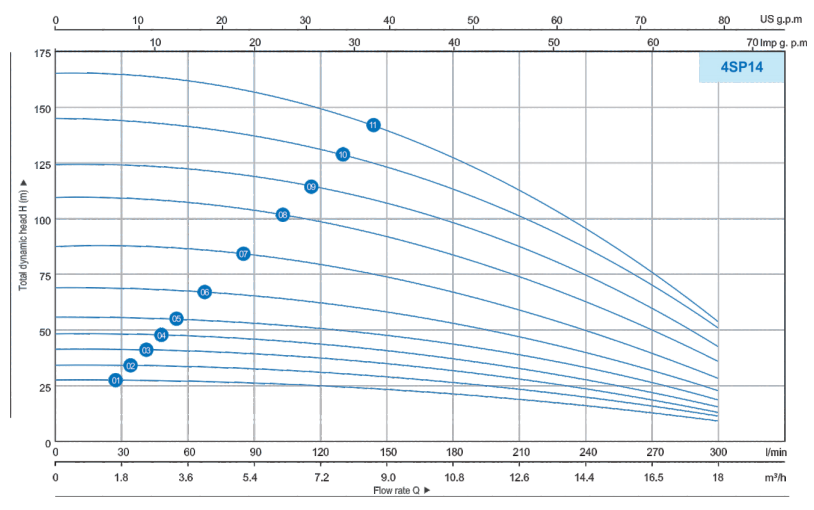

NO.	MODEL		POWER		DELIVERY n≈2850 r/min
	1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	1.8	3.6	5.4	7.2	9.0	10.8	12.6	14.4	16.5	18
	1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	30	60	90	120	150	180	210	240	270	300
01	4SPM14/4	4SP14/4	1.3	1.75	H(m)		28	27	25	24	24	23	22	20	17	14	9
02	4SPM14/5	4SP14/5	1.5	2			34	34	32	31	30	28	27	25	21	17	11
03	4SPM14/6	4SP14/6	1.8	2.5			41	40	38	37	36	34	32	30	25	21	14
04	4SPM14/7	4SP14/7	2.2	3			48	47	45	43	41	40	38	34	30	24	16
05	4SPM14/8	4SP14/8	2.6	3.5			55	54	51	49	47	45	43	39	34	28	18
06	-	4SP14/10	3	4			69	67	64	61	59	57	54	49	42	35	23
07	-	4SP14/13	4	5.5			89	87	83	80	77	74	70	64	55	45	30
08	-	4SP14/16	5	7			110	107	102	98	95	91	87	79	68	55	37
09	-	4SP14/18	5.5	7.5			124	121	115	110	107	102	98	89	77	62	41
10	-	4SP14/21	6.8	7.5			144	140	134	129	124	119	114	102	88	72	46
11	-	4SP14/24	7.5	10			165	161	153	147	142	136	130	118	102	83	55
