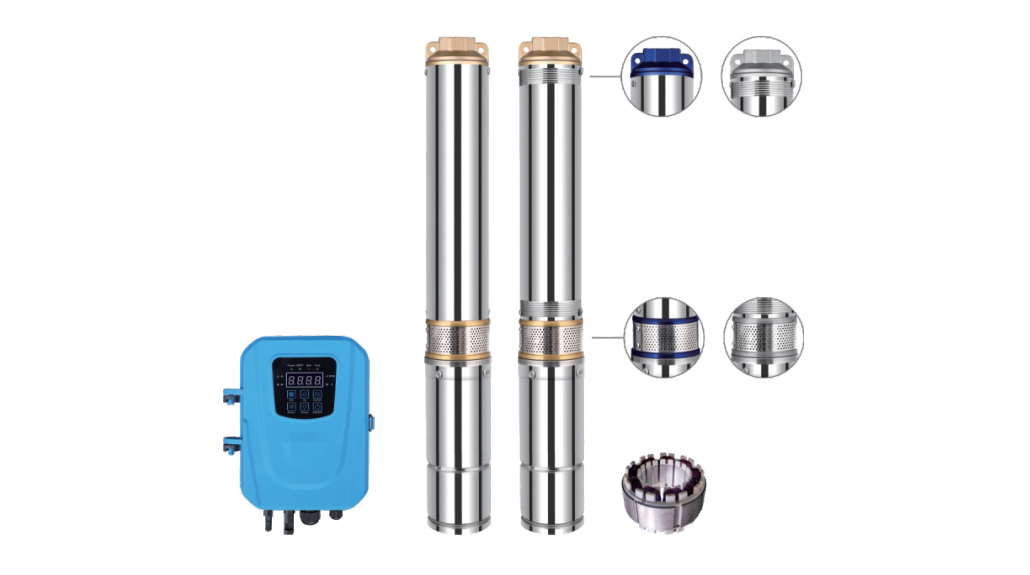

DC SOLAR PUMP Solar Powered Deep Well Pump
Category:
Deep well pump
Description:
Specializing in the production of all kinds of water pumps
Key words:
Water pump
DC SOLAR PUMP Solar Powered Deep Well Pump
● The leading manufactory for dc solar pumps in china
● Can be powered by both solar panel and battery
● Environmental protection,clean energy
● High efflciency permanent magnetic motor, officiency improved 15%-25%
● Over voltage protection
● Under voltage protection
● Locked rotor protection
● Low temperature rise
● Water supplyin rural area
|
Model |
Dimensions(cm) |
Weight(kg) |
||
|
A |
B |
C |
||
|
DC controller |
23.8 |
18 |
9.5 |
1.5 |
Techincal Data
|
No. |
ITEM |
Voltage |
Optimum input voltage(DC) |
Power |
Max.flow |
Max. Head |
Outlet |
Cable |
Solar panel |
|
|
Open circuit voltage(voc) |
Power |
|||||||||
|
01 |
3DC3-25-24-200 |
24V |
30V-48V |
200W |
3.0m³/h |
25m |
1.25" |
2m |
<50V |
≥1.3*PUMPPOWER |
|
02 |
3DC3-35-24-300 |
24V |
30V-48V |
300W |
3.0m³/h |
35m |
1.25" |
2m |
<50V |
≥1.3*PUMPPOWER |
|
03 |
3DC3.5-47-48-400 |
48V |
60V-90V |
400W |
3.5m/h |
47m |
1.25" |
2m |
<100V |
≥1.3*PUMPPOWER |
|
04 |
3DC3.5-80-48-600 |
48V |
60V-90V |
600W |
3.5m³/h |
80m |
1.25" |
2m |
<100V |
≥1.3*PUMP POWER |
|
05 |
3DC3.5-80.72.6o |
72V |
90V-120V |
600W |
3.5m³/h |
80m |
1.25" |
2m |
<150V |
≥1.3*PUMP POWER |
|
06 |
3DC3.5-95-48-750 |
48V |
60V-90V |
750W |
3.5m²/h |
95m |
1.25" |
2m |
<100V |
≥1.3*PUMPPOWER |
|
07 |
3DC3.5-95-72-750 |
72V |
90V-120V |
750W |
3.5m³/h |
95m |
1.25" |
2m |
<150V |
≥1.3*PUMP POWER |
|
08 |
3DC3.8-123-72-1100 |
72V |
90V-120v |
1100W |
3.8m³/h |
123m |
1.25" |
2m |
<150V |
≥1.3*PUMP POWER |
|
09 |
3DC3.8-123-110-1100 |
110V |
110V-150V |
1100W |
3.8m³/h |
123m |
1.25" |
2m |
<200V |
≥1.3*PUMP POWER |
|
10 |
3DC3.8-155-110-1300 |
110v |
110V-150V |
1300W |
3.8m³/h |
155m |
1.25" |
2m |
<200V |
≥1.3*PUMP POWER |
|
11 |
3DC3.8-180-110-1500 |
110V |
110V-150V |
1500W |
3.8m³/h |
180m |
1.25" |
2m |
<200V |
≥1.3*PUMP POWER |
|
No. |
ITEM |
Voltage |
Optimum input voltage(DC) |
Power |
Max.flow |
Max. Head |
Outlet |
Cable |
Solar panel |
|
|
Open circuit voltage(voc) |
Power |
|||||||||
|
01 |
3DC5-45-48-500 |
48V |
60V-90V |
500W |
5m³/h |
45m |
1.5" |
2m |
<100V |
≥1.3*PUMPPOWEF |
|
02 |
3DC5.2-50-48-600 |
48V |
60V-90V |
600W |
5.2m³/h |
50m |
1.5" |
2m |
<100V |
≥1.3*PUMPPOWER |
|
03 |
3DC5.2-50-72-600 |
72V |
90V-120V |
600W |
5.2m³/h |
50m |
1.5" |
2m |
<150V |
≥1.3*PUMP POWER |
|
04 |
3DC5.2-75-110-750 |
110V |
110V-150V |
750W |
5.2m³/h |
75m |
1.5" |
2m |
<200V |
≥1.3*PUMP POWER |
|
05 |
3DC5.5-65-72-750 |
72V |
90V-120V |
750W |
5.5m³/h |
65m |
1.5" |
2m |
<150V |
≥1.3*PUMP POWER |
|
06 |
3DC5.5-65-110-750 |
110V |
110V-150V |
750W |
5.5m³/h |
65m |
1.5" |
2m |
<200V |
≥1.3*PUMP POWER |
|
07 |
3DC6-84-110-1100 |
110V |
110V-150V |
1100W |
6m³/h |
84m |
1.5" |
2m |
<200V |
≥1.3*PUMP POWFE |
|
08 |
3DC6-125-110-1500 |
110V |
110V-150V |
1500W |
6m³/h |
125m |
1.5" |
2m |
<200V |
≥1.3*PUMP POWER |
|
09 |
3DC7-46-72-750 |
72V |
90V-120V |
750W |
7m³h |
46m |
1.5" |
2m |
<150V |
≥1.3*PUMP POWER |
|
10 |
3DC7-46-110-750 |
110V |
110V-150V |
750W |
7m²/h |
46m |
1.5" |
2m |
<200V |
≥1.3*PUMP POWER |
|
11 |
3DC7.5-62-110-1100 |
110V |
110V-150V |
1100W |
7.5m³/h |
62m |
1.5" |
2m |
<200V |
≥1.3*PUMP POWER |
|
12 |
3DC7.5-78-110-1500 |
110V |
110V-150V |
1500W |
7.5m³/h |
78m |
1.5" |
2m |
<200V |
≥1.3*PUMPPOWER |
|
No. |
ITEM |
Voltage |
Optimum input voltage(DC) |
Power |
Max.flow |
Max. Head |
Outlet |
Cable |
Solar panel |
|
|
Open circuit voltage(voc) |
Power |
|||||||||
|
01 |
4DC3.6-52-48-300 |
48V |
60V-90V |
300W |
3.6m³/h |
52m |
1.25" |
2m |
<50V |
≥1.3'PUMP POWER |
|
02 |
4DC3.9-100-48-750 |
48V |
60V-90V |
750W |
3.6m³ |
101m |
1.25" |
2m |
<100V |
≥1.3*PUMP POWER |
|
03 |
4DC3.9-100-72-750 |
72V |
90V-120V |
750W |
3.9m'/h |
100m |
1.25" |
2m |
<150V |
≥1.3*PUMP POWER |
|
03 |
4DC6-42-48-600 |
48V |
60V-90V |
600W |
6.0m³/h |
42m |
1.25" |
2m |
<150V |
≥1.3*PUMPPOWER |
|
04 |
4DC6-42-72-600 |
72V |
90V-120V |
600W |
6.0m³/h |
42m |
1.25" |
2m |
<150V |
≥1.3*PUMP POWER |
|
05 |
4DC6-56-48-750 |
48V |
60V-90V |
750W |
6.0m/h |
56m |
1.25" |
2m |
<100V |
≥1.3*PUMP POWER |
|
06 |
4DC6-56-72-750 |
72V |
90V-120V |
750W |
6.0m²/h |
56m |
1.25" |
2m |
<150V |
≥1.3*PUMP POWER |
|
07 |
4DC6-84-72-1100 |
72V |
90V-120V |
1100W |
6.0m³/h |
84m |
1.25" |
2m |
<150V |
≥1.3*PUMP POWEF |
|
08 |
4DC6-84-110-1100 |
110V |
110V-150V |
1100W |
6.0m³/h |
84m |
1.25" |
2m |
<200V |
≥1.3*PUMP POWER |
|
09 |
4DC6-112-110-1300 |
110V |
110V-150V |
1300W |
6.0m³/h |
112m |
1.25" |
2m |
<200V |
≥1.3*PUMP POWER |
|
10 |
4DC6-135-110-1500 |
110V |
110V-150V |
1500W |
6.0m³/h |
135m |
1.25" |
2m |
<200V |
≥1.3*PUMP POWER |
|
No. |
ITEM |
Voltage |
Optimum input voltage(DC) |
Power |
Max.flow |
Max. Head |
Outlet |
Cable |
Solar panel |
|
|
Open circuit voltage(voc) |
Power |
|||||||||
|

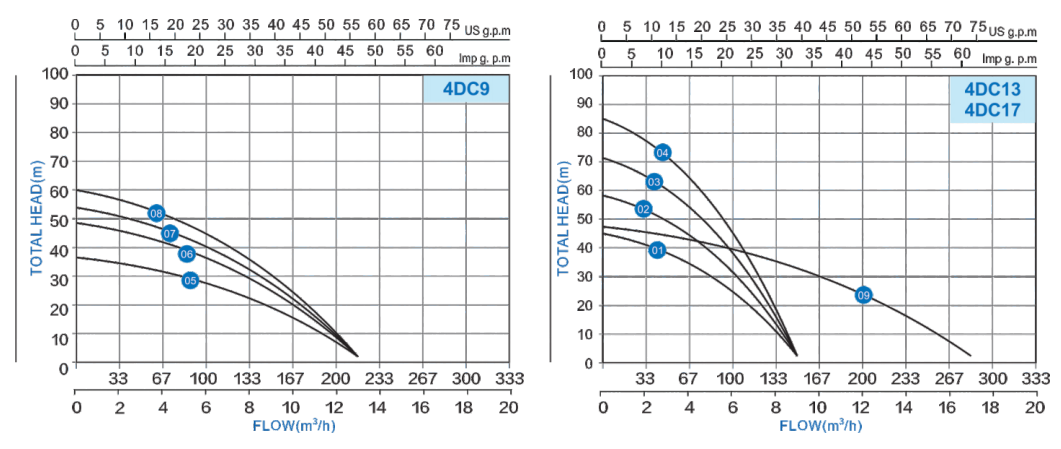

01 |
4DC9-45-110-750 |
110V |
110V-150V |
750W |
9.0m³/h |
45m |
2" |
2m |
<200V |
≥1.3*PUMP POWER |
|
02 |
4DC9-58-110-1100 |
110V |
110V-150V |
1100W |
9.0m³/h |
58m |
2" |
2m |
<200V |
≥1.3*PUMP POWER |
|
03 |
4DC9-71-110-1300 |
110V |
110V-150V |
1300W |
9.0m³/h |
71m |
2" |
2m |
<200V |
≥1.3*PUMP POWER |
|
04 |
4DC9-85-110-1500 |
110V |
110V-150V |
1500W |
9.0m³/h |
85m |
2" |
2m |
<200V |
≥1.3*PUMP POWFR |
|
05 |
4DC13-36-110-750 |
110V |
110V-150V |
750W |
13.0m²/h |
36m |
2" |
2m |
<200V |
≥1.3*PUMP POWER |
|
06 |
4DC13-49-110-1100 |
110V |
10V-150V |
1100W |
13.0m³/h |
49m |
2" |
2m |
<200V |
≥1.3*PUMP POWE |
|
07 |
4DC13-54-110-1300 |
110V |
110V-150V |
1300W |
13.0m³/h |
54m |
2" |
2m |
<200V |
≥1.3*PUMP POWER |
|
08 |
4DC13-60-110-1500 |
110V |
110V-150V |
1500W |
13.0m³/h |
60m |
2" |
2m |
<200V |
≥1.3*PUMP POWER |
|
09 |
4DC17-48-110-1500 |
110V |
110V-150y |
1500W |
17.0m³/h |
48m |
2" |
2m |
<200V |
≥1.3*PUMP POWER |
